Description

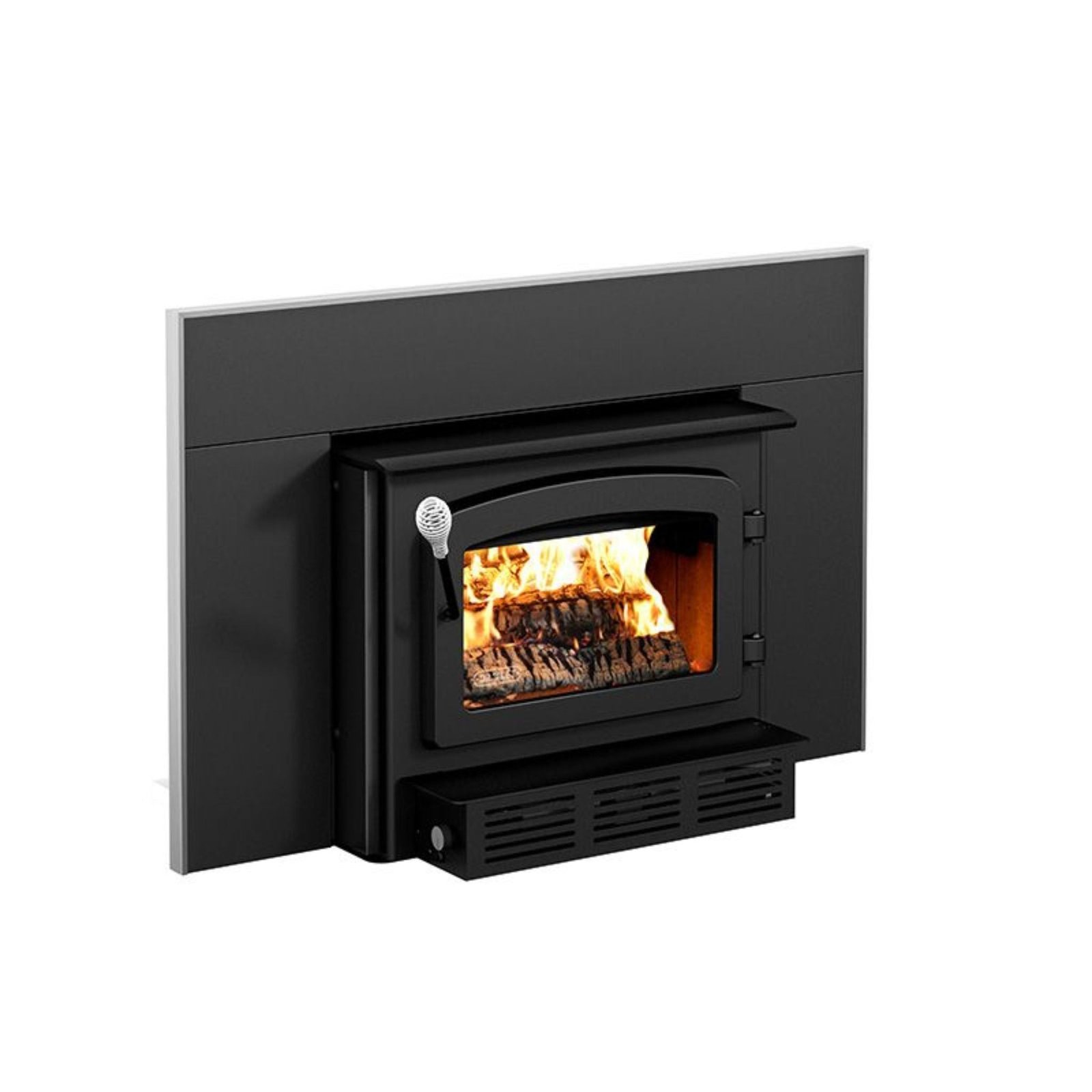

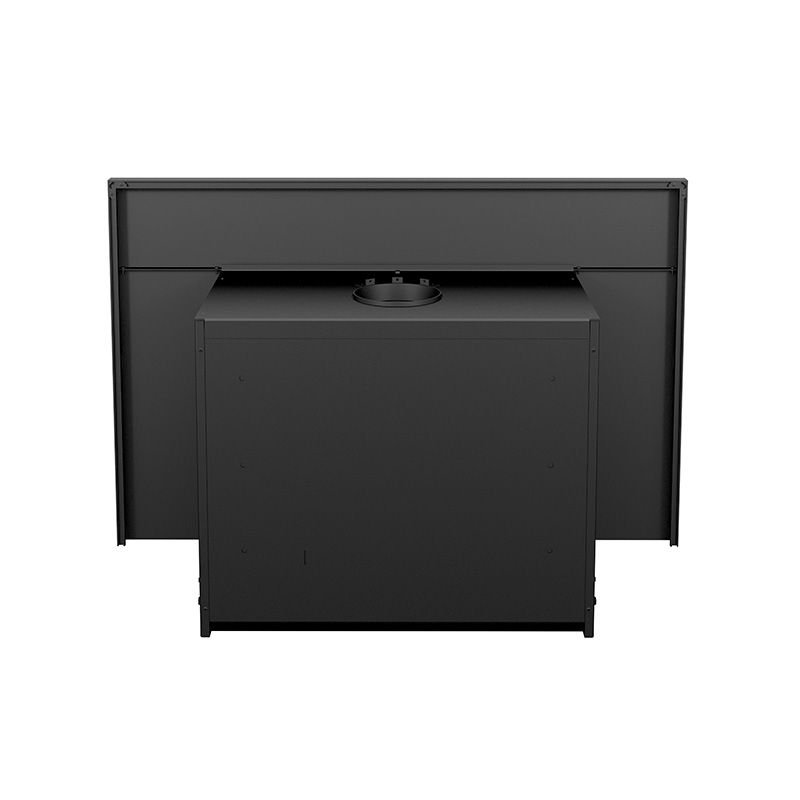

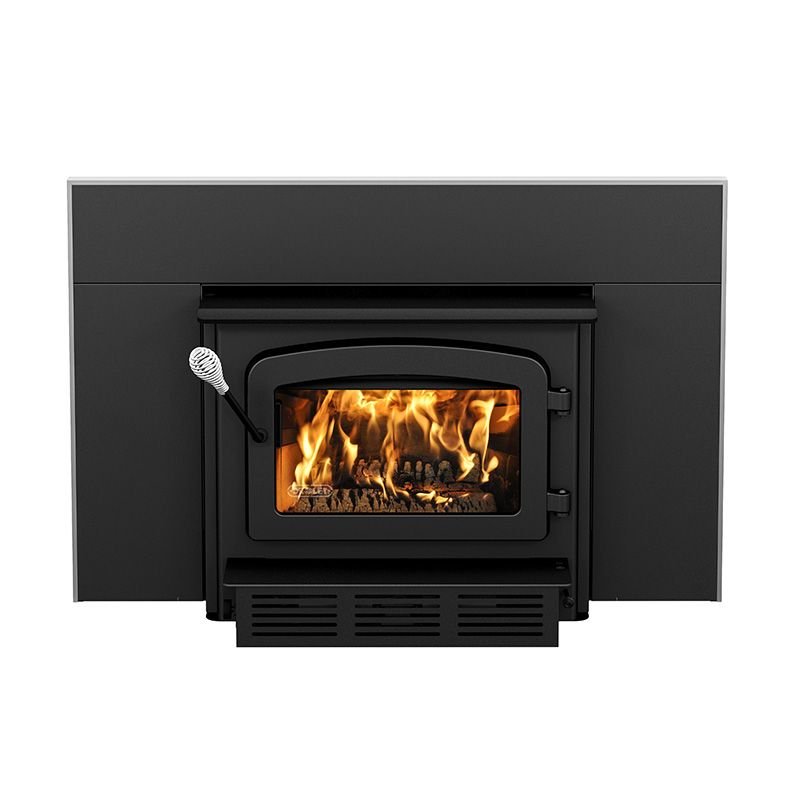

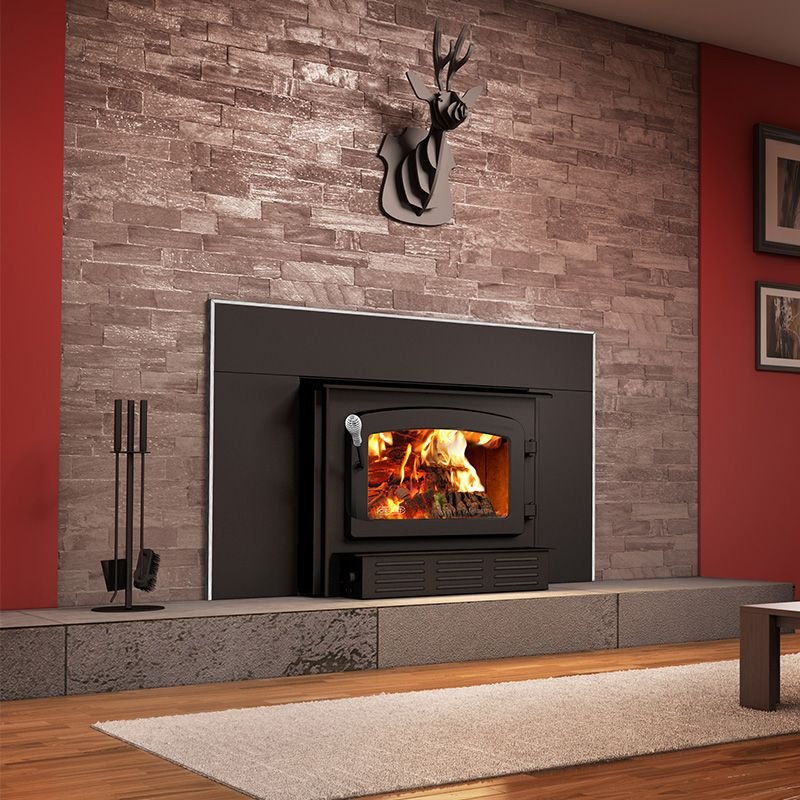

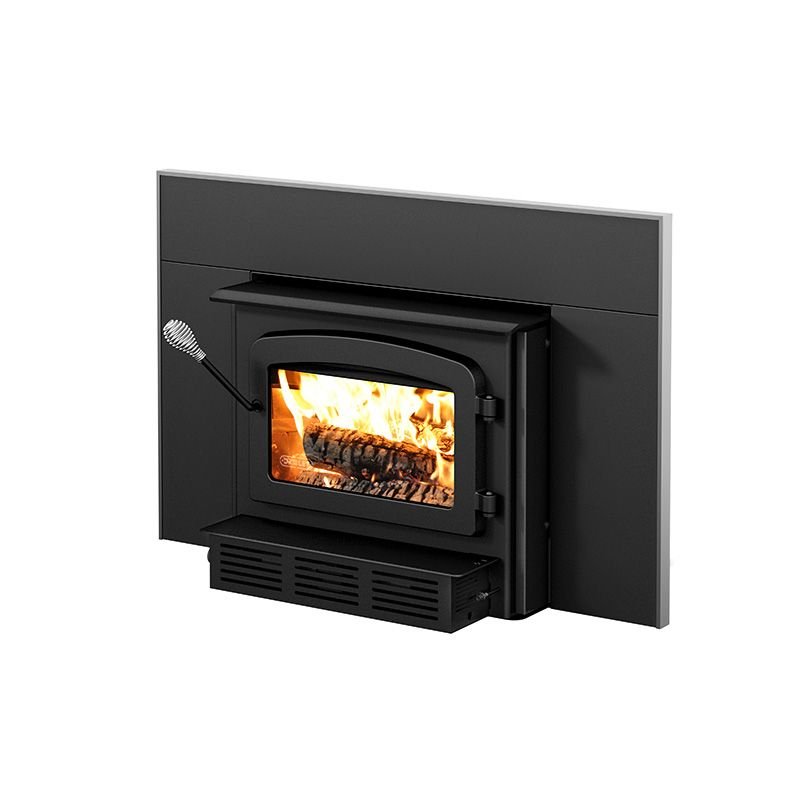

Drolet Escape 1800-I Wood Insert DB03125 offers a high-performance heating solution that transforms your existing masonry fireplace into a modern, energy-efficient heat source. Designed to warm areas up to 2,100 square feet, this large-capacity insert delivers up to 75,000 BTU/h of heat with a long 8-hour burn time and impressive efficiency ratings. Its 2.4 cubic foot firebox accommodates logs up to 20 inches and features durable ceramic glass, an ash lip for easy cleanup, and a built-in blower for optimal heat distribution. Crafted with thick steel and backed by a limited lifetime warranty, this Canadian-made insert is EPA 2020 certified, ensuring clean and eco-friendly operation.
Features:
Heats up to 2,100 sq. ft. with 75,000 BTU/h output
Long 8-hour burn time and 20" max log length
Includes 144 CFM premium blower
Durable 5/16" steel construction with stainless-steel heat shield
Non-catalytic combustion with low 2.3 g/h emissions
Ceramic glass door with cast iron frame
Made in Canada with EPA and CSA certifications
Included
: blower, ceramic glass, ash lip, air damper

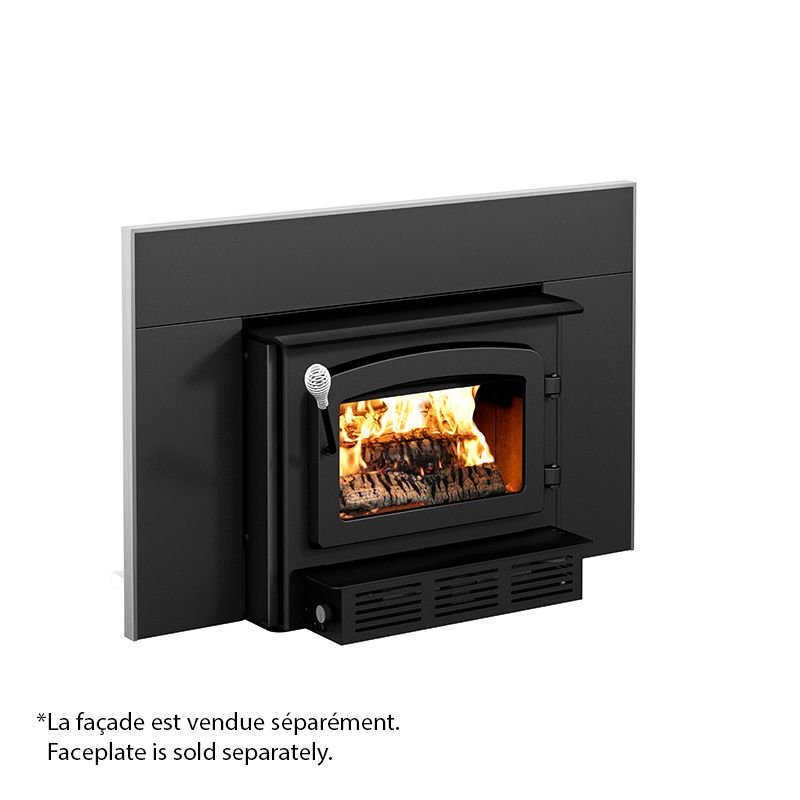

*Faceplate Sold Separately
Drolet 32'' X 50'' Cuttable Faceplate (18-Gauge) AC01357
Drolet 29" X 44" Regular Faceplate With Nickel Trim – AC03370
Drolet 32'' X 50'' Large Faceplate With Nickel Trim – AC03375
*Installation must be done according to the specifications and drawings detailed in the owner's manual.
A contact number is required for all Drolet, Century, and England's Stove Works orders at checkout
Specifications
| Maximum heat output-dry cordwood | 75,000 BTU/h (22.0 kW) |
|---|---|
| Maximum overall heat output rate | 44,500 BTU/h (13.04 kW) |
| Minimum overall heat output rate | 14,200 BTU/h (4.16 kW) |
| Heating area | 500 – 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| Maximum burn time | 8 h |
| Maximum log length | 20" |
| Fuel type | Dry cordwood (16" recommended) |
| Optimum efficiency | 79 % |
| Overall dimension (Height) | 23 1/8" |
| Overall dimension (Width) | 28 3/8" |
| Overall dimension (Depth) | 26 3/8" |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Minimum chimney height | 12' |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Baffle type | High quality vermiculite |
| Glass type | Ceramic glass |
| Door type | Single, glass with cast iron frame |
| Firebox lined with refractory bricks | Yes |
| Warranty | Limited lifetime |
| Shipping weight | 405 lb (178 kg) |
EPA compliance
| EPA status | Yes, EPA 2020 approved |
|---|---|
| Average particulate emission rate | 2.3 g/h |
| Average overall efficiency (HHV) | 72 % |
| Average carbon monoxide | 69 g/h |
| EPA loading volume | 1.95 ft³ |
| Combustion technology | Non-catalytic |
| US emissions standard | EPA / ASTM WK47329 |
| US safety standard | UL 1482, UL 737 |
| Tested by | By an accredited laboratory (CAN/USA) |
Certified to EPA NSPS Step 2. Manufacturer-published particulate emission rate 2.3 g/h, against the 2.5 g/h cord-wood limit. The EPA certification number is on the appliance's permanent label and is supplied with the unit.
