Description

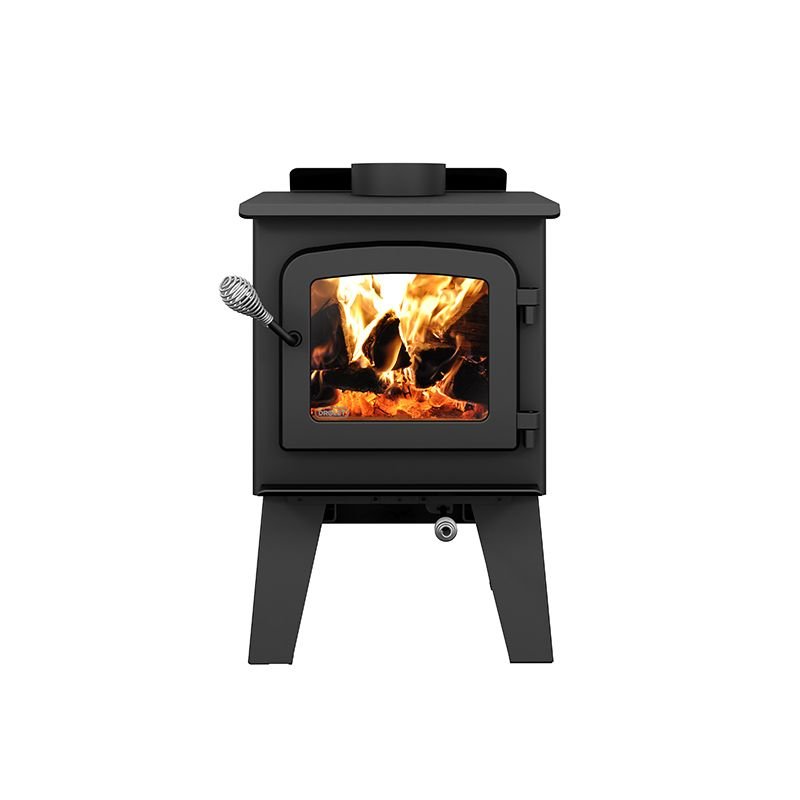

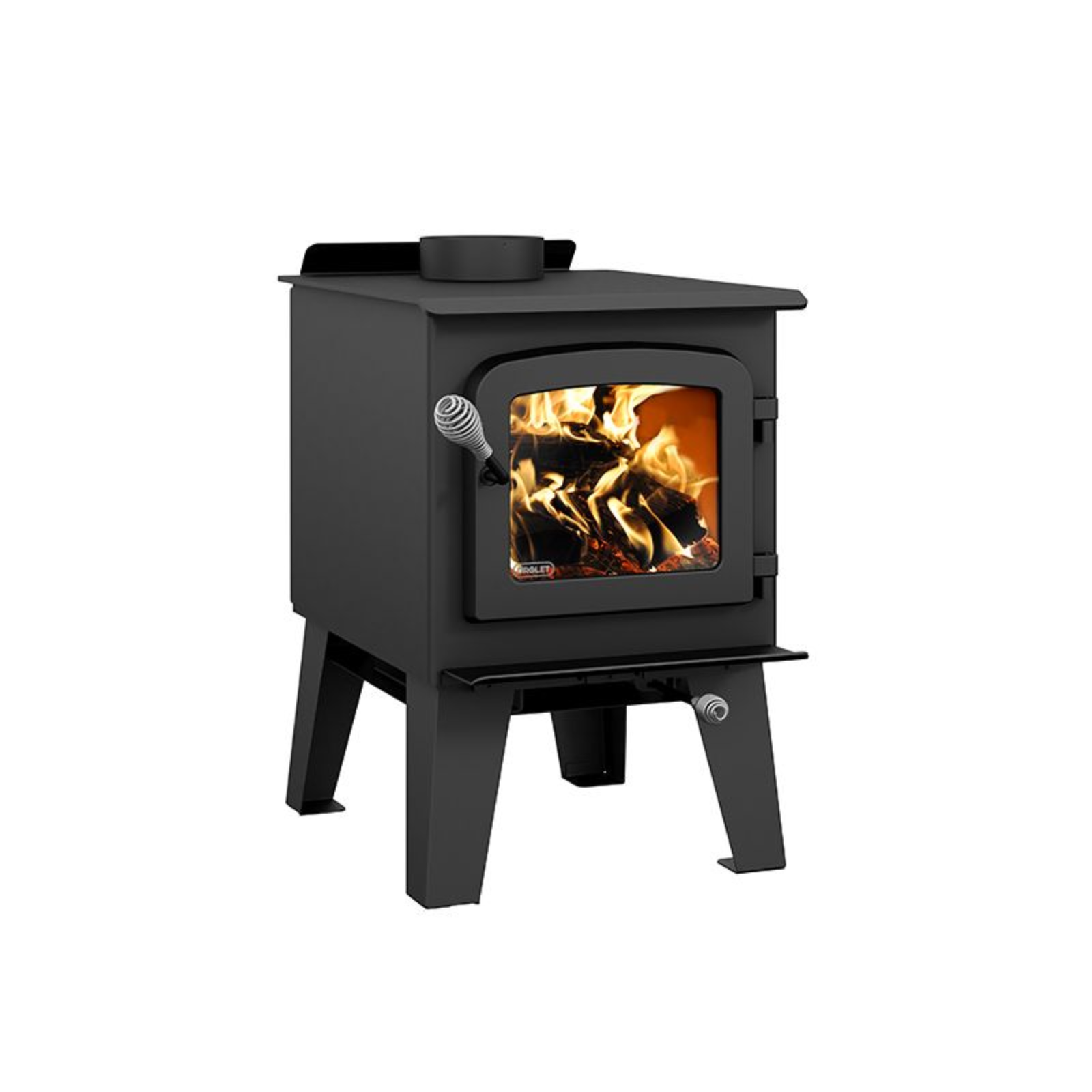

The Drolet Spark II Wood Burning Stove DB03401 is a compact and efficient heating solution designed for small spaces up to 1,200 square feet. With a powerful maximum heat output of 45,000 BTU/h and a clean-burning, EPA-certified performance of just 1.8 g/h, this stove delivers reliable warmth while being environmentally conscious. Its deep combustion chamber reduces ash maintenance, and the non-catalytic design ensures long-term durability and simpler operation. Perfect for cottages, cabins, or mobile homes, the Spark II is both alcove and mobile home approved, offering flexible installation options.
Features:
Heats up to 1,200 ft² with 45,000 BTU/h maximum output
EPA certified with low emissions of 1.8 g/h
Deep firebox requires less frequent ash removal
Compact size ideal for smaller spaces and mobile homes
Non-catalytic combustion technology for easy maintenance
Optional premium blower available for enhanced heat distribution
Ceramic glass door with cast iron frame for viewing the fire
UL and CSA certified for North American standards
Limited lifetime warranty for peace of mind
Weight : 242 lbs
*Installation must be done according to the specifications and drawings detailed in the owner's manual.
A contact number is required for all Drolet, Century, and England's Stove Works orders at checkout
Specifications
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
|---|---|
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Heating area | 250 – 1,200 ft² |
| Overall firebox volume | 1.8 ft³ |
| Maximum burn time | 5 h |
| Maximum log length | 17" |
| Fuel type | Dry cordwood (16" recommended) |
| Optimum efficiency | 80 % |
| Overall dimension (Height) | 28 3/4" |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Depth) | 28 7/8" |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Minimum chimney height | 12' |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Baffle type | High quality vermiculite |
| Glass type | Ceramic glass |
| Door type | Single, glass with cast iron frame |
| Firebox lined with refractory bricks | Yes |
| Warranty | Limited lifetime |
| Shipping weight | 235 lb (107 kg) |
EPA compliance
| EPA status | Yes, EPA 2020 approved |
|---|---|
| Average particulate emission rate | 1.8 g/h |
| Average overall efficiency (HHV) | 74 % |
| Average carbon monoxide | 74 g/h |
| EPA loading volume | 1.55 ft³ |
| Combustion technology | Non-catalytic |
| US emissions standard | EPA |
| US safety standard | UL 1482, UL 737 |
| Tested by | By an accredited laboratory (CAN/USA) |
Certified to EPA NSPS Step 2. Manufacturer-published particulate emission rate 1.8 g/h, against the 2.5 g/h cord-wood limit. The EPA certification number is on the appliance's permanent label and is supplied with the unit.
